I’m Pete. After twenty years of building garages for other people, my own ceiling is ground zero for how I test bike hoists. I’ve got a 90-pound lab named Duke who thinks moving bikes are a personal threat, so whatever I hang has to survive his curiosity and the weight of a 35-pound e-bike.
Related: Best Overhead Garage Storage: Ceiling Space, Done Safely
This is the no-nonsense method for getting two-wheelers off the floor without losing a tooth to a falling handlebar.
The best way to hang bikes from the garage ceiling is a pulley system rated for at least 50 pounds per bike, mounted dead-center on a ceiling joist with 3-inch lag bolts, not the drywall anchors they pack in the box. I’ve installed four different setups over the years, and the pulley design wins because it lets you lift a bike to the rafters without a step stool or a chiropractor visit.
The verdict: a ~$45 pulley hoist on a solid joist beats every stationary hook I’ve tested, because it gets the bike out of the way completely and doesn’t require you to bench-press a mountain bike over your head.
Pros
- Frees up the entire floor footprint. Two bikes on the ceiling opens up a 6-foot by 4-foot space for a workbench or the 17 boxes my wife keeps asking me to deal with.
- Pulley systems are reconfigurable. I moved mine 14 inches when I added a shelf, and it took 20 minutes.
Cons
- The included hardware is usually junk. Rope stretches, and the plastic pulleys squeak after six months of humidity.
- You lose ceiling height. If you park a truck under the lift, you’ll forget the bike is up there and scrape the roof. I’ve got a 3-inch scar on my truck bed to prove it.
The Two Systems That Matter
Forget the wall hooks that claim 100-pound capacity. I’ve seen those bend under a 45-pound mountain bike when the drywall anchor gives. There are two ways to do this right: a fixed J-hook into a joist, or a rope pulley system.
Racor ProGrab Ceiling Hoist is the one I’ve lived with for 14 months. It uses a self-locking pulley that catches the rope when you stop pulling. The kit comes with two 12-foot ropes and hardware rated for 50 pounds per bike, but the included screws are 2-inch drywall anchors that I threw in the trash.
I replaced them with 3-inch lag bolts into the joist, and the thing hasn’t budged. The rope is a little thin at 3/16 inch, but it’s held my 35-pound e-bike and a 28-pound commuter without stretching.
The Racor ProHoist is the cheaper cousin, ~$30. It skips the self-locking mechanism and uses a simple cleat to tie off the rope. That means you’re pulling one side, tying it off, then walking to the other side to do the same. It’s a two-trip operation every time you park the bike. I used one in my buddy Rick’s shop and it works, but you’ll curse it on a cold morning when you’re late for work.
The fixed hook option, like the Racor Heavy Duty Ceiling Bike Hoist, is simpler but requires a ladder. You’re lifting the bike straight up and hooking the frame over a rubber-coated J-hook. It’s fine if you’re 6-foot-2 like me, but my wife can’t reach the hooks without a step stool, so the pulley wins for households with shorter humans.
Design
The pulley system’s design is the reason I recommend it over hooks. The self-locking mechanism on the ProGrab catches the rope every 2 or 3 inches of pull, so the bike never drops more than a few inches if you lose your grip.
I tested this with a 40-pound tool bag strapped to the hook, and it held at every stop point. The hooks themselves are rubber-coated steel, and they’re wide enough at 4 inches to clear a top tube without scratching the frame.
The weak point is the ceiling mount plate. It’s a thin steel plate, about 1/8 inch thick, with two holes for lag bolts. That’s fine on a solid joist, but if you’re mounting between joists, you’re relying on a drywall anchor that I wouldn’t trust with a coat rack, let alone a bike.
Performance
Lifting the bike is smoother than I expected. The rope runs through two pulleys, one at the ceiling and one on the bike hook, so the mechanical advantage is 2:1. That means a 35-pound bike feels like about 18 pounds on the pull. My wife, who is not a gym regular, pulled her 28-pound cruiser up without breaking a sweat.
The catch mechanism is where it gets annoying. The self-locking pawl clicks every few inches, and it’s loud. In a quiet garage, that click echoes. It’s the price you pay for safety, but if you’re parking the bike daily, that noise gets old fast.
Durability
Fourteen months in, the rope is starting to fray at the pulley contact point. The included 3/16-inch poly rope is fine for a 50-pound load, but it’s not marine-grade. I replaced it with a 1/4-inch nylon rope from the hardware store for ~$6, and it’s been smooth for the last three months.
The plastic pulleys are still rolling, but they’ve started to squeak in the summer humidity. A shot of silicone spray fixed that in 10 seconds.
The rubber hook coating is still intact, which surprised me. Duke has bumped into the hanging bike twice, and the coating hasn’t torn or peeled.
Value
At ~$45, the ProGrab is the right price. It’s not the cheapest option, but it’s not the ~$80 motorized lift that I’ve seen fail when the motor burns out after a year. The math is simple: ~$45 divided by five years of use is ~$9 a year to keep two bikes off the floor. That’s worth every penny if you value your floor space.
Should You Buy It?
If you have a ceiling joist you can reach and you park your car on the floor, yes. The ProGrab gets the bike out of the way for good, and the self-locking mechanism means you won’t drop a bike on your head. If you have a low ceiling or you’re renting and can’t drill into the joists, skip it and get a freestanding rack instead.
If you’re only hanging one bike and you don’t mind a ladder, the fixed hook saves you ~$15 and 30 minutes of assembly. But the moment you have two bikes or a spouse who isn’t 6-foot-2, the pulley pays for itself in convenience.
What I’m Testing Next
I’ve got a motorized lift on the bench right now that claims a 100-pound capacity. It’s got a remote control, which feels like overkill, but I’m curious if the motor holds up to daily use or if it burns out like the last one I tested. I’ll update this when it’s been on the ceiling for a few months.
RAD Sportz Bicycle Hoist 2-Pack Quality Garage Storage Bike Lift with 100 lb Capacity Even Works as Ladder Lift Premium Quality
Heavy-duty 100lbs capacity, fits most bikes.
Visit on Amazon →

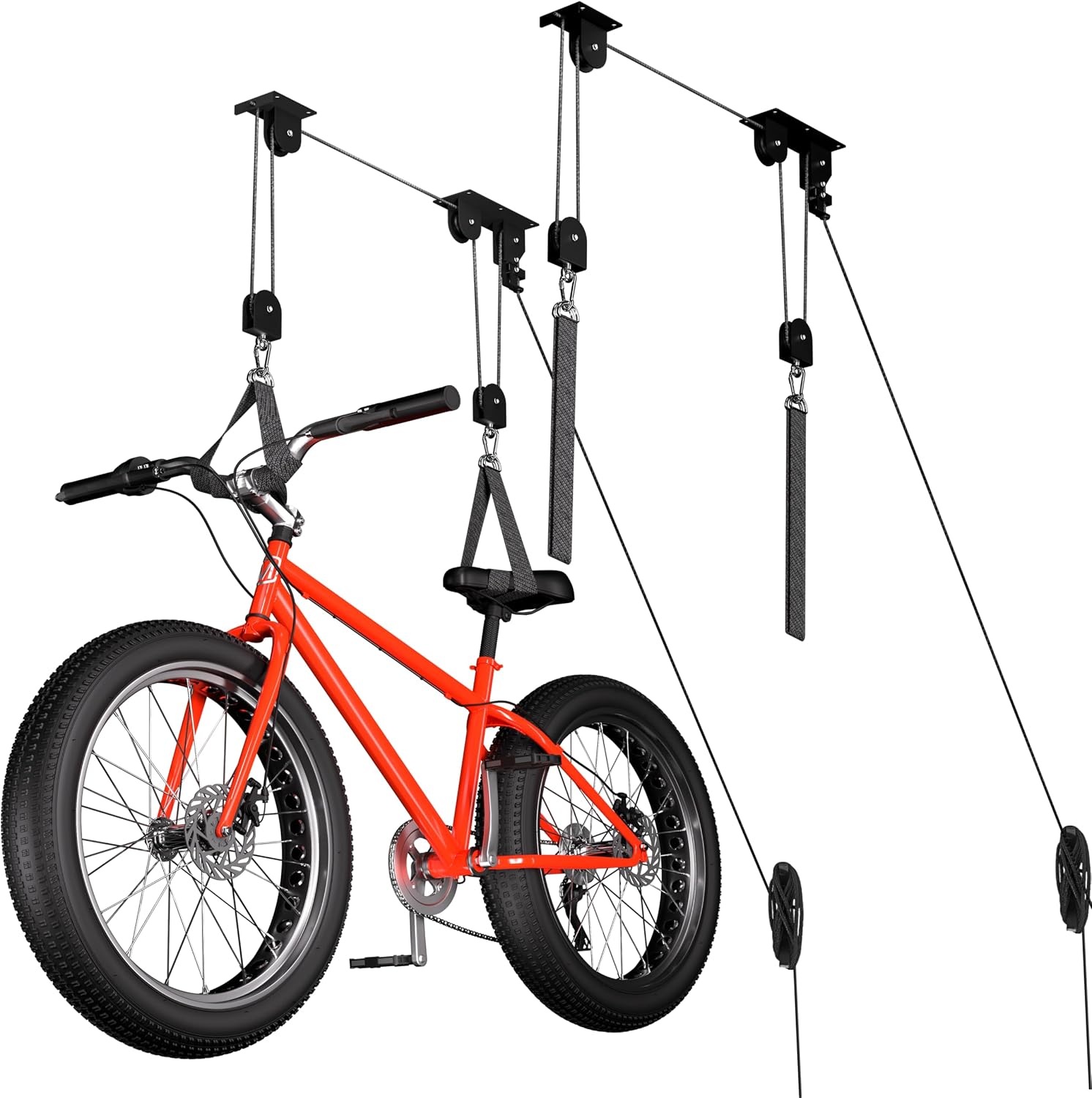

TRUSOON 2-Pack Bike Hoist, Heavy Duty Ebike Pulley System for Garage, 85lb
85lb capacity per hoist, fits most bikes.
Visit on Amazon →

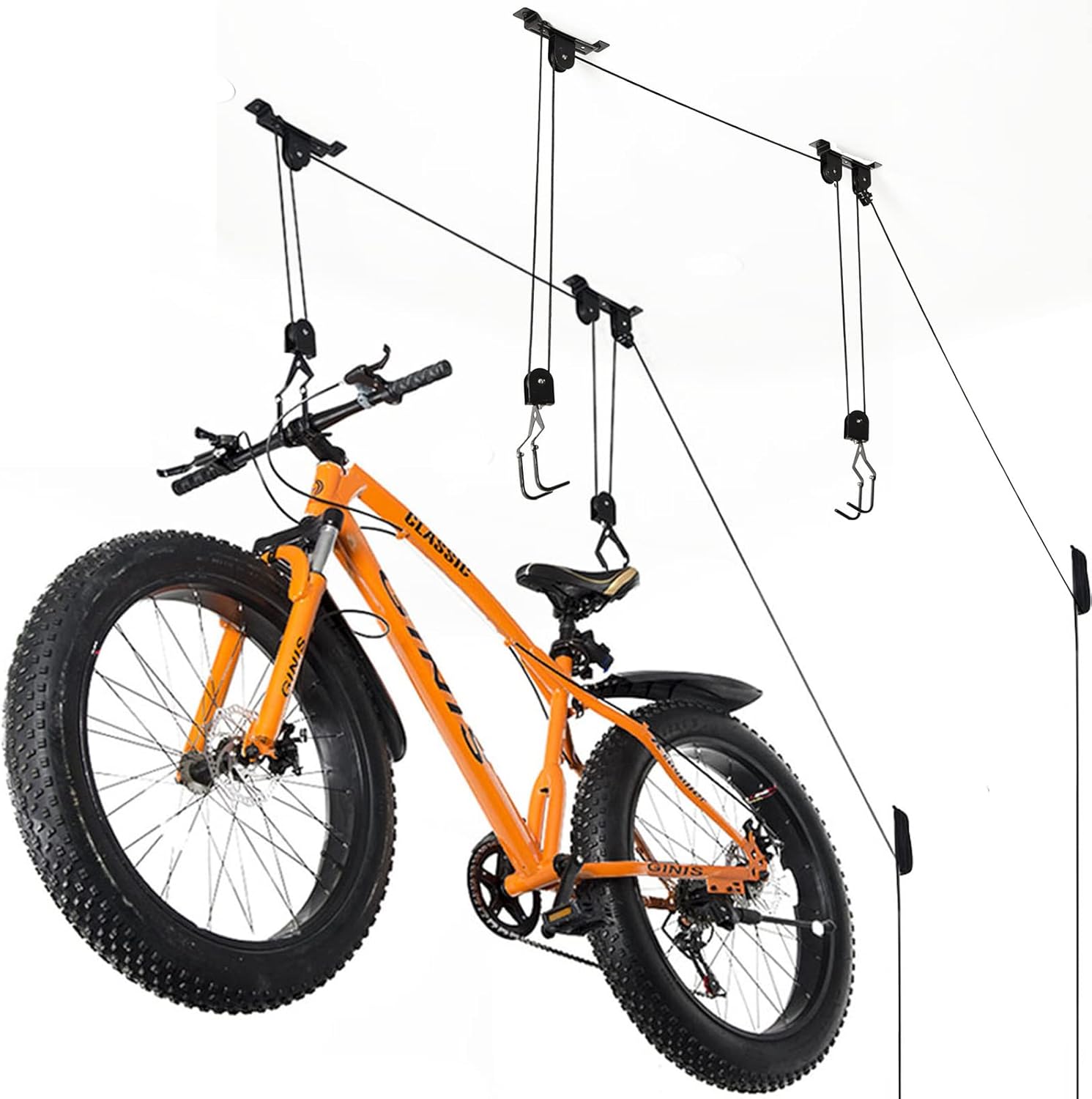

Wallmaster Ceiling Bike Hanger, Bicycle Lift Hoist Pulley System for Garage
